Medical extension tube packaging, infusion extension tube assembly
and bagging equipment, quality is guaranteed.
With the rapid development of medical consumables related fields,
the demand for medical consumables products has increased sharply,
and the industry market size has been expanding. In 2018, the
global sales of medical consumables were 33.68 billion US dollars,
and it is expected to grow at a rate of 15% to 20% per year. The
demand for medical extension tubes is also growing rapidly, which
brings greater challenges to the productivity, quality and
after-sales service of medical consumables manufacturers. Relying
on manual assembly, not only requires the use of a large number of
labor, high labor costs, and the production and assembly process of
pollution risk, difficult to ensure quality, low production
efficiency, has been unable to adapt to the development trend of
today's medical consumables market. In order to solve this dilemma,
Jiecheng has developed automated production lines for medical
extension tube assembly machines and packaging machines at the
request of customers. It has the advantages of high production
capacity, stable quality and low production cost.
Device function:

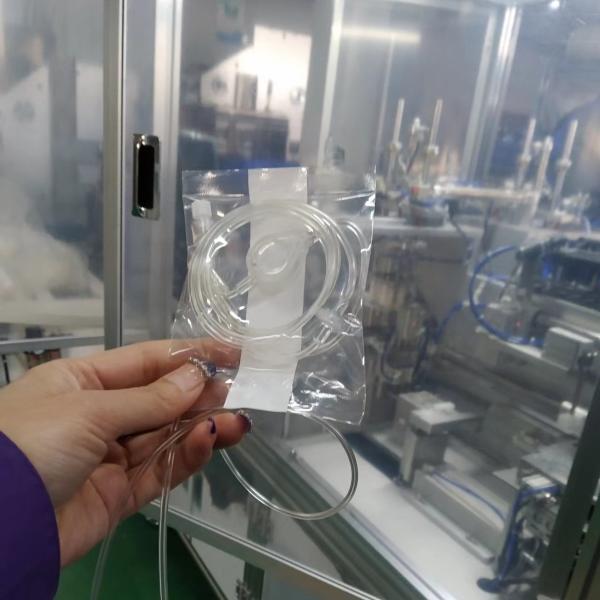

The equipment is used for coiling, bagging, welding, manual
feeding, automatic coiling, bagging and welding of analgesic pump
extension tubes with a length of 1000mm and an outer diameter of
3mm with Luer connectors. The processing process is automated,
which is faster and more efficient and saves costs.
1. Production efficiency, 9S/2 pieces;
2. The size of the product coil is set according to the outer
packaging bag and the length of the product, and different products
are suitable for different fixtures;
3. Compact and reasonable structural design makes operation and
maintenance more humanized.
4. It is equipped with automatic counting function, and has the
function of detecting whether the product package is sealed.
Technical Parameters:
1. Dimensions: length 1.5* width 1.2* height 1.8m
1. Power supply: 380V, 50HZ.
2. Equipment power: 3.5KW.
3. Air source 0.6MPA.
4. The operating system adopts programmable controller PLC plus
friendly man-machine interface display.
Configuration instructions:
| Pneumatic components | Airtac cylinder |
| Electronic control PLC | Omron |
| Operation interface | 10.5 flat touch screen |
| detection sensor | Japan Otex |
| servo motor | Yaskawa Electric |
| line track | Bank of Taiwan |
| bearing | NSK |
| |
Company Profile
Jiezhicheng Automation specializes in R&D, production, sales,
ultrasonic, plastic welding machines, non-standard automation,
hot-melt machines, testing equipment, automated assembly, fixtures,
molds and other machinery and equipment. The company's main service
industries: automotive, medical, Environmental protection,
cosmetics, electronics, etc., core technical capabilities include,
automatic welding equipment, post-processing of hollow board
coaming box, post-processing equipment of automobile coaming,
design and manufacture of non-standard automation equipment for
medical device products, professionally provide medical device
product welding Equipment has made significant contributions in the
industry.There are many patents in ultrafiltration, MBR flat
membrane, DTRO membrane and other water treatment equipment.The
company has all kinds of processing equipment, can respond quickly
according to customer needs, and guarantee customers' pre-sales and
after-sales services.
1. Where is your factory located?
We are located in Suzhou City in South China, near to Shanghai
City.
2. Are you a trading company or a manufacturer?
We are a manufacturer with more than 10 years experience solutions.
3. Why choose us?
A. We have 10+ experienced suppliers to help you know the best
price and recommend the latest trends.
B. Our equipment is more durable and reliable. It will replace
human labor hours.
C. We can provide ODM&OEM service according to your parameters
and technical requirements. .
D. Our team understands your needs and provides excellent customer
service and support.
4. What is the minimum order quantity?
Our MOQ is one set, and the price will vary according to the
quantity.
5. What's the delivery time?
Generally, 45-60 days after confirming the order.
6. What is the payment terms?
We can accept T/T, Western Union, PayPal, MoneyGram.
Usually 50% deposit in advance, and pay the balance before
shipping.
7. How about the quality assurance?
We will track every procedure and check the goods before delivery.
Also will show you product and package pictures according to your
request.
8. How to solve the fault problem?
If you are urgent, our team will provide you with online technical
support in time.
If any parts are damaged, we can send new ones according to the
specific situation. In conclusion, if you have any questions,
please contact us, we will reply as soon as possible.
9. How to get the shipping cost?
Please advise your destination port or address so that we can check
the shipment by sea or by air according to your request.
